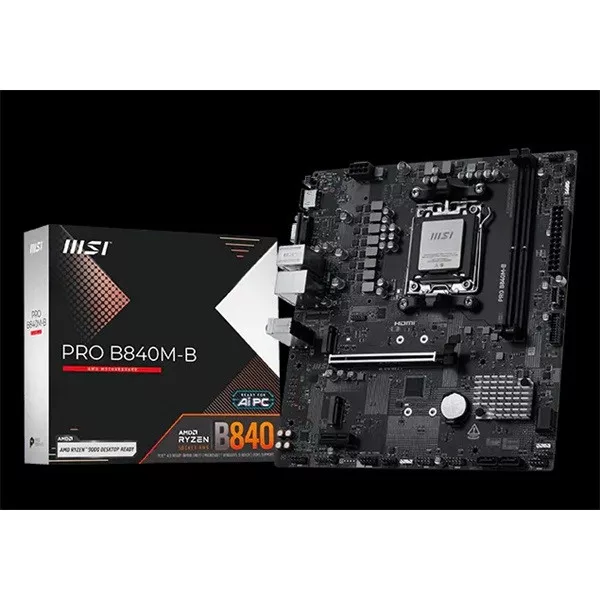

MSI Alaplap AM5 PRO B840M-B AMD B840, mATX

Name: MSI Alaplap AM5 PRO B840M-B AMD B840, mATX
Brand: MSI PCC
SKU: chs396085
Price: 40140 HUF
Availability: InStock

Bővebben

Raktáron

40 140 Ft

Részletek

Chipset	AMD B840
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio	Realtek^® ALC897 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Adatok

Gyártó

MSI PCC

EAN

4711377360166

kivitel

Dobozos

Listaár

34 900 HUF

Gyártói cikkszám

PRO B840M-B

Gyártó

MSI COMPUTER

EAN

4711377360166

Garancia

36 hónap

Memória órajel

8000

Memória típus

DDR5

HDMI

Van

Display Port

Nincs

Wireless

Nincs

SATA III

USB 2.0

D-Sub

Van

Thunderbolt

Nincs

Párhuzamos port

Nincs

Soros port

Nincs

DVI

Nincs

Quad Channel

Nincs

M.2 foglalat

Van

Foglalat típusa

AM5

Chipset gyártó

AMD

Audio

7.1 HD

Grafikus foglalat

PCI-Ex16

Form Factor

ATX

LAN1

100/1000/2500 Mb/s

Max memória

128

Memória foglalatok száma

Raid

Alaplapi

PCI foglalatok száma

PCI-E foglalatok száma

VGA integrált

Nincs

USB 3.1

Garancia (hónap)

Termék gyártója

MSI PCC

Cikkszám

chs396085

Tömeg

960 g/db
