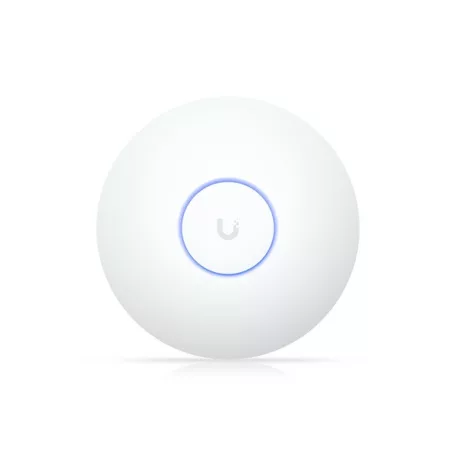

UBiQUiTi Wireless Access Point DualBand 1x2500Mbps, 4,98Gbps, 3x3 MU-MIMO, POE Nélkül, Falra rögzíthető - U7-LR

Dimensions

O175.7 x 43 mm (O6.9 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams

5

Coverage Area

160 m2 (1,750 ft2)

Max. Client Count

300+

Uplink

2.5 GbE

Mounting

Ceiling, Wall (Plastic Mounting Plate included)

Power Method

PoE

Performance

MIMO

5 GHz

3 x 3 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.3 Gbps (BW160)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

6 dBi

2.4 GHz

4 dBi

Max. TX Power

5 GHz

27 dBm

2.4 GHz

26 dBm

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n

6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing

?

Band Steering

?

802.11v BSS Transition Management

?

802.11r Fast Roaming

?

802.11k Radio Resource Management (RRM)

?

Advanced Radio Management

?

Passpoint (Hotspot 2.0)

?

Captive Hotspot Portal

Custom Branding Landing Page

?

Voucher Authentication

?

Payment-Based Authentication

?

External Portal Server Support

?

Password Authentication

?

Guest Network Isolation

?

Private Pre-Shared Key (PPSK)

?

WiFi Speed Limiting

?

Client Device Isolation

?

WiFi Schedules

?

RADIUS over TLS (RadSec)

?

Dynamic RADIUS-assigned VLAN

?

Hardware

Max. Power Consumption

14W

Includes PoE Adapter

—

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

448 g (15.8 oz)

Management

Ethernet

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Polycarbonate, galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant

?

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.1.120 and later

Mobile App

iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
