ZYXEL Wireless Access Point Dual Band BE5100 (WiFi 7) Falra rögzíthető, NWA30BE-EU0102F

Wireless

Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 688Mbps

5GHz: 4324Mbps

Frequency band

2.4GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80-, 160- and 240-MHz

Conducted typical transmit output power^*1

US (2.4GHz/5GHz):

25/26dBm

EU (2.4GHz/5GHz):

16/26dBm

RF Design

Antenna type

2.4/5GHz undetachable external Antenna

Antenna gain

2.4GHz:

2dBi, 2x2:2SS

5GHz:

3dBi, 2x2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Features

Band steering

Yes

WDS/Smart Mesh^*2

Yes

Wireless Bridge

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

No

Advanced cellular coexistence

Yes

Security

Encryption

WPA/WPA2/WPA3 personal

Authentication

No

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

No

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
155 x 140 x 35 / 6.10 x 5.51 x 1.45

Weight (g/lb.)
307.3 / 0.68

Packing

Dimensions (WxDxH)(mm/in.)
175 x 240 x 60 / 6.89 x 9.45 x 2.36

Weight (g/lb.)
640.9 / 1.41

Included accessories

Power Adapter

Ethernet Cable

MTBF (hr)

631,165

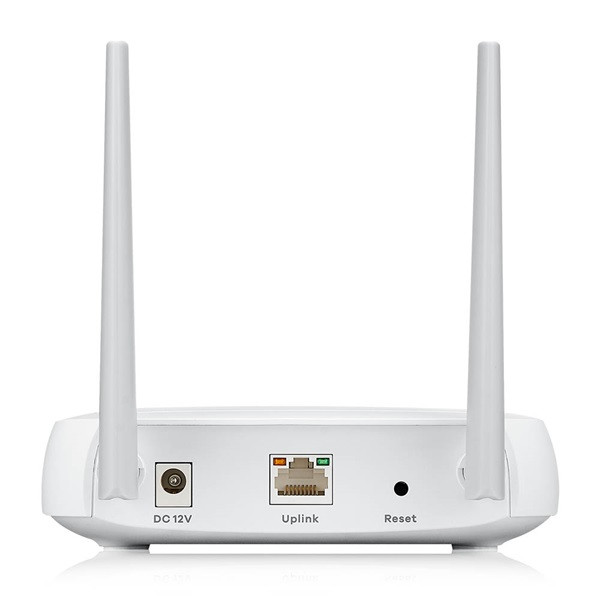

Physical Interfaces

Ethernet port

1 x 1/2.5GbE LAN

Power

Power Adapter: AC 100 - 240V - 50/60 Hz 0.3A

Output: DC +12V 1.5A

PoE modes

IEEE 802.3af: Not supported

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications

Operating

Temperature
0°C to 40°C/32°F to 104°F

Humidity
10% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C / -40°F to 158°F

Humidity
10% to 90% (non-condensing)

Certifications

Radio

FCC Part 15C

FCC Part 15E

FCC Part 2.1091

ETSI EN 300 328

EN 301 893

Draft EN 303 687

EN 50385

EN 50665

EN IEC 62311

LP0002

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55032

EN55035

EN61000-3-2/-3

EN60601-1-2

BSMI CNS15936

Safety

EN 62368-1

IEC 62368-1

BSMI CNS15598-1
