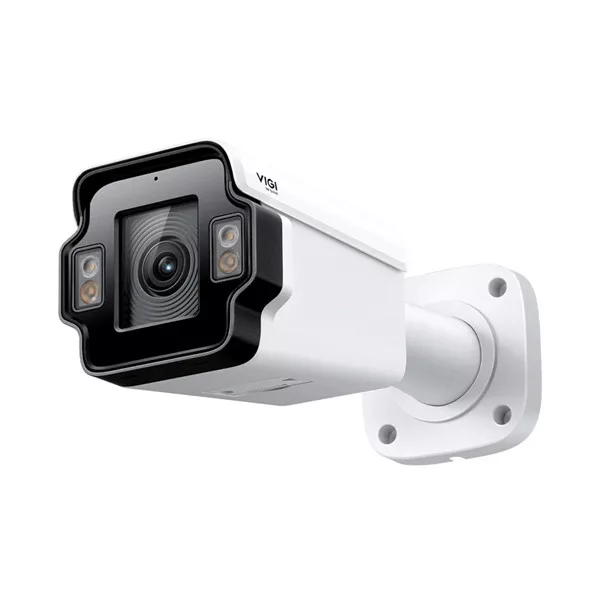

TP-LINK IP Kamera kültéri színes éjjellátó 4 Megapixel, 5x Optikai Zoom Motoros IR Rendszám felismerő, INSIGHT LPR345Z

Name: TP-LINK IP Kamera kültéri színes éjjellátó 4 Megapixel, 5x Optikai Zoom Motoros IR Rendszám felismerő, INSIGHT LPR345Z
Brand: TP-LINK
SKU: chs404615
Price: 339480 HUF
Availability: InStock

TP-LINK IP Kamera kültéri színes éjjellátó 4 Megapixel, 5x Optikai Zoom Motoros IR Rendszám felismerő, INSIGHT LPR345Z

Bővebben

Raktáron

339 480 Ft

Részletek

Kamera
Képérzékelő	1/2.9” Progressive Scan CMOS
Shutter Speed	1/100 to 1/1000 s
Slow Shutter	Yes
Min. szükséges megvilágítás	0.005 Lux; 0 Lux with White Light

LENS
Type	Motorized Varifocal Lens
Focal Length	2.7-13.5 mm (5X Optical Zoom)
Aperture	F1.6
FOV	2.7-13.5 mm: • Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8° • Diagonal FOV: 34.1°-122.8°
Lens Mount	Φ14
DORI Distance	2.7-13.5 mm: • Detect: 66-207 m (217-579 ft) • Observe: 28-86 m (92-282 ft) • Recognize: 13-41 m (43-135 ft) • Identify: 7-21 m (23-69 ft)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
White LED	• Quantity: 4
Illuminator On/Off Control	Auto/Scheduled/Always off

VIDEO
Max. Resolution	2688 x 1520
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • White Balance
Image Enhancement	BLC/3D DNR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

Hang
Hangbemenet	Built-in Microphone Audio In Interface
Hangkimenet	Audio Out Interface
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

Hálózat
Szabvány	TCP/IP, UDP, ICMP, ARP, SNMP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF	Yes
API	Open Network Video Interface (Profile G/S/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	Web UI
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication

Figyelmeztetési és eseménykezelési vezérlés
Basic Event	• Motion Detection • Camera Tampering • Exception (Illegal Login)
Alarm Linkage	• Push Notifications

License Plate Recognition Management
Capture Mode	• Trigger Type: Video Detection, I/O Coil • Picture Type: Scene Picture, Scene Picture + Close-up Picture • Max Recognition Distance: 8 m (26 ft) at default zoom; 15 m (49 ft) at maximum zoom • Scene Mode: Entrance & Exit
Capture Parameters	• Image Format: JPEG • Capture Resolution: 2560×1440 • LED Control: Supports automatic light control/time control of LEDs • Smart Recognition: ANPR • Capture Picture Overlay: Capture Time, Plate Number, Vehicle Permission Type (Allowlist, Blocklist, Temporary)
Entrance and Exit	• Barrier Gate Control Mode: By Camera • Relay Output: 1-ch relay output, supporting opening and closing of barrier gates • Allowlist And Blocklist: Up to 100,000 allowlist and blocklist totally (recommended for use with a microSD card)

Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out
Reset Button	Yes
Power	DC Power Port
RS-485 Port	Yes
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	N/A
Audio	1 Audio In, 1 Audio Out

Általános
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Csomagolás tartalma	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	1.07 Kg
Power Supply	DC • 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply:T120100-2C1 (for EU Regions) PoE • PoE: 802.3af, class 0, Max.12.95 W ErP Information • Power consumption in networked standby when all wired network ports are connected: 2W.
Protection	IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	10.1 × 3.9 × 4 in (256 × 100 × 101 mm)
Certifications	CE, NTRA, KC, FCC, IP67, IC, IK10, VCCI, BSMI, ONVIF

Adatok

Gyártó

TP-LINK

EAN

1210002633147

csatlakozók

LAN

felbontás

2K (2048x1280)

kivitel

Csőkamera

Listaár

314 325 HUF

Gyártói cikkszám

INSIGHT LPR345Z

Gyártó

TP-LINK

EAN

1210002633147

Garancia

48 hónap

Kártyatípus

MicroSDXC

Kültéri kivitel

Van

Színes/FF

Színes

Energiaellátás

Hálózat és POE

Garancia (hónap)

Termék gyártója

TP-LINK

Cikkszám

chs404615

Tömeg

1,6 kg/db
