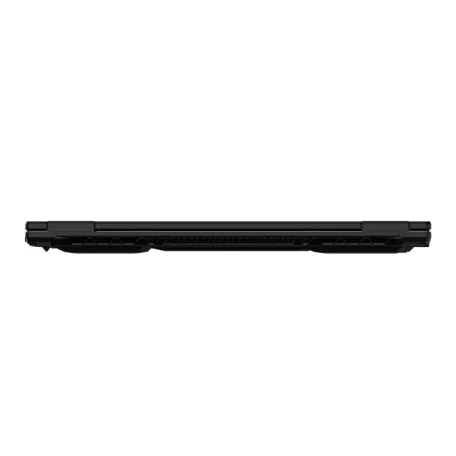

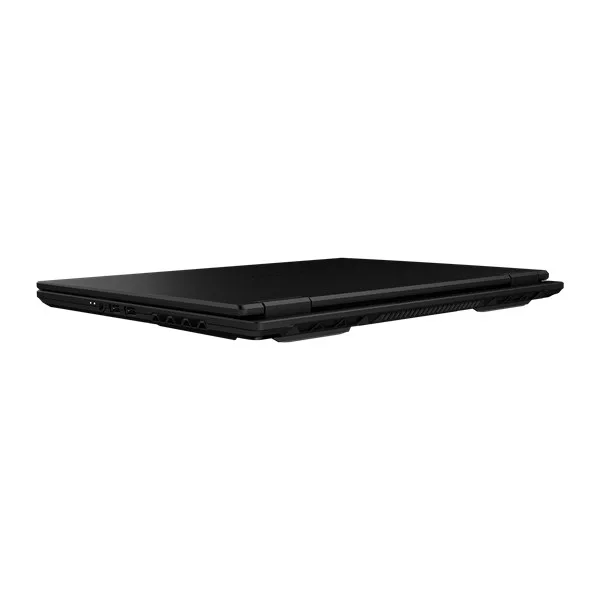

GIGABYTE GAMING A16 CVH
UEFI Shell OS
Intel® Core™ i7-13620H (24MB cache, up to 4.9 GHz, 10 cores, 16 threads)
NVIDIA® GeForce RTX™ 5060 Laptop GPU
8GB GDDR7
16" 16:10
IPS WQXGA (2560×1600) 165Hz, 3ms, sRGB 100%, 400nits (typical)
IPS WUXGA (1920x1200) 165Hz, 300nits (typical)
MUX Switch
Up to 64GB DDR5 5200MHz
* 2x SO-DIMM sockets for expansion
2x PCIe Gen4x4 M.2 slot
Up to 4TB PCIe NVMe™ M.2 SSD
*The storage capacity may differ by country and region. Please contact your local dealers or retailers for the latest product information.
**If there is any abnormality that cannot be attributed to Gigabyte/AORUS during the warranty period, it is not covered by the warranty. More info:https://member.aorus.com/global/productwarranty

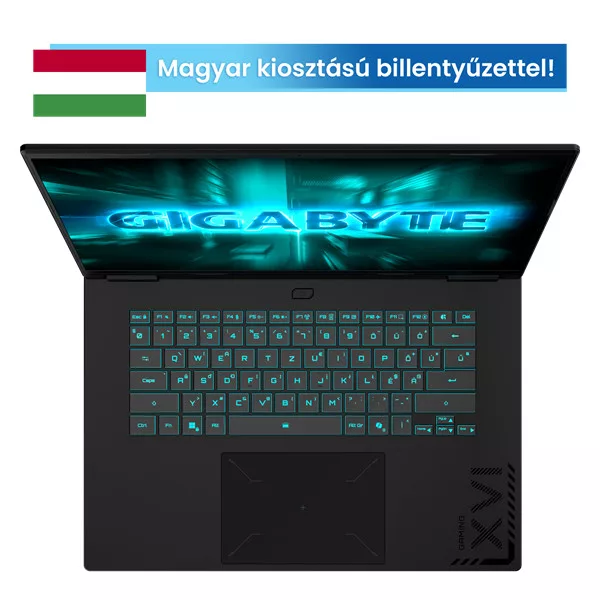

1-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel

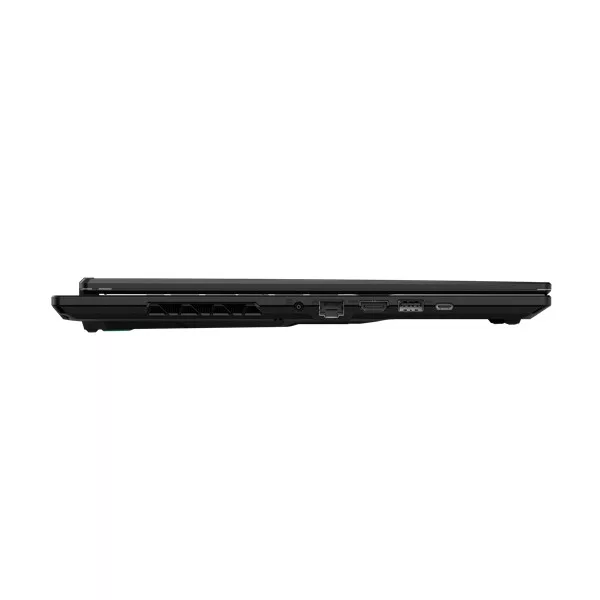

Left Side:
1 x DC-in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen1
1 x Type-C USB3.2 Gen1 support DisplayPort™ 1.4 and Power Delivery 3.0

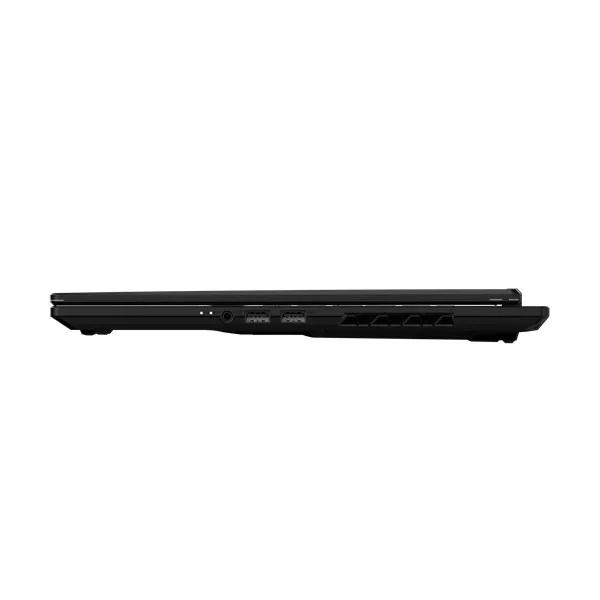

Right Side:
1 x Type-A support USB3.2 Gen1
1 x Type-A support USB2.0
1 x 3.5mm Audio Jack support mic / headphone combo
2x 2W speakers
Microphone
Dolby Atmos®
WIFI 6E (802.11ax 2x2)
LAN: 1G
Bluetooth v5.2
FHD (1080p) IR Webcam
Build-in array Microphone
Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)
Li Polymer 76Wh
150W AC Adapter
358.3 x 262.5 x 19.45~22.99 mm
*The dimensions of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.
~2.2kg
*The weight of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.
Black Steel
GIGABYTE GAMING A16 CWH
Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.)
Windows 11 Home
UEFI Shell OS
Intel® Core™ i7-13620H (24MB cache, up to 4.9 GHz, 10 cores, 16 threads)
NVIDIA® GeForce RTX™ 5070 Laptop GPU
8GB GDDR7
16" 16:10
IPS WQXGA (2560×1600) 165Hz, 3ms, sRGB 100%, 400nits (typical)
IPS WUXGA (1920x1200) 165Hz, 300nits (typical)
MUX Switch
Up to 64GB DDR5 5200MHz
* 2x SO-DIMM sockets for expansion
2x PCIe Gen4x4 M.2 slot
Up to 4TB PCIe NVMe™ M.2 SSD
*The storage capacity may differ by country and region. Please contact your local dealers or retailers for the latest product information.
**If there is any abnormality that cannot be attributed to Gigabyte/AORUS during the warranty period, it is not covered by the warranty. More info:https://member.aorus.com/global/productwarranty
1-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel
Left Side:
1 x DC-in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen1
1 x Type-C USB3.2 Gen1 support DisplayPort™ 1.4 and Power Delivery 3.0
Right Side:
1 x Type-A support USB3.2 Gen1
1 x Type-A support USB2.0
1 x 3.5mm Audio Jack support mic / headphone combo
2x 2W speakers
Microphone
Dolby Atmos®
WIFI 6E (802.11ax 2x2)
LAN: 1G
Bluetooth v5.2
FHD (1080p) IR Webcam
Build-in array Microphone
Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)
Li Polymer 76Wh
150W AC Adapter
358.3 x 262.5 x 19.45~22.99 mm
*The dimensions of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.
~2.2kg
*The weight of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.
Black Steel
GIGABYTE GAMING A16 CMH
Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.)
Windows 11 Home
UEFI Shell OS
Intel® Core™ i7-13620H (24MB cache, up to 4.9 GHz, 10 cores, 16 threads)
Intel® Core™ i5-13420H (12MB cache, up to 4.6 GHz, 8 cores, 12 threads)
NVIDIA® GeForce RTX™ 4050 Laptop GPU
6GB GDDR6
16" 16:10
IPS WUXGA (1920x1200) 165Hz, 300nits (typical)
MUX Switch
Up to 64GB DDR5 5200MHz
* 2x SO-DIMM sockets for expansion
2x PCIe Gen4x4 M.2 slot
Up to 4TB PCIe NVMe™ M.2 SSD
*The storage capacity may differ by country and region. Please contact your local dealers or retailers for the latest product information.
**If there is any abnormality that cannot be attributed to Gigabyte/AORUS during the warranty period, it is not covered by the warranty. More info:https://member.aorus.com/global/productwarranty
Single Color Backlit Keyboard, Up to 1.7mm Key-travel
Left side
1 x DC-in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen1
1 x Type-C USB3.2 Gen1 support DisplayPort™ 1.4 and Power Delivery 3.0
Right side
1 x Type-A support USB3.2 Gen1
1 x Type-A support USB2.0
1 x 3.5mm Audio Jack support mic / headphone combo
2x 2W speakers
Microphone
Dolby Atmos®
WIFI 6E (802.11ax 2x2)
LAN: 1G
Bluetooth v5.2
HD (720p) Webcam
Build-in array Microphone
Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)
Li Polymer 76Wh
150W AC Adapter
358.3 x 262.5 x 19.45~22.99 mm
*The dimensions of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.
~2.2kg
*The weight of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.
Black Steel
