| Part No |
90PF05A1-M00MF0 |
| Model Name |
P500SV-05210H0020 |
| EAN Code |
4711636299503 |
| UPC Code |
199291299504 |
| WEEE |
5.057 |
| BASE UNIT |
VSPF05A1-BU0010 |
| |
|
| Size |
8.6L |
| Color |
Gray |
| Form Factor |
Small form factor |
| Processor |
Intel® Core™ 5 Processor 210H 2.2 GHz (12MB Cache, up to 4.8 GHz, 8 Cores, 12 Threads) |
| CPU Cooler |
Air Cooler |
| DIMM Memory |
16GB DDR5 SO-DIMM |
| Memory Speed |
Memory speed is 5600 MT/s, but run at 4800~5200 MT/s. |
| Memory Max. |
64GB |
| Integrated GPU |
Intel® Graphics |
| Storage |
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| Optical Drive |
Without optical drive |
| LAN |
Intel WGI219V 10/100/1000 Mbps, non-vPro |
| Audio |
High Definition 7.1 Channel Audio |
| Wireless |
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card |
| Power Supply |
180W power supply (80+ Bronze, peak 228W) |

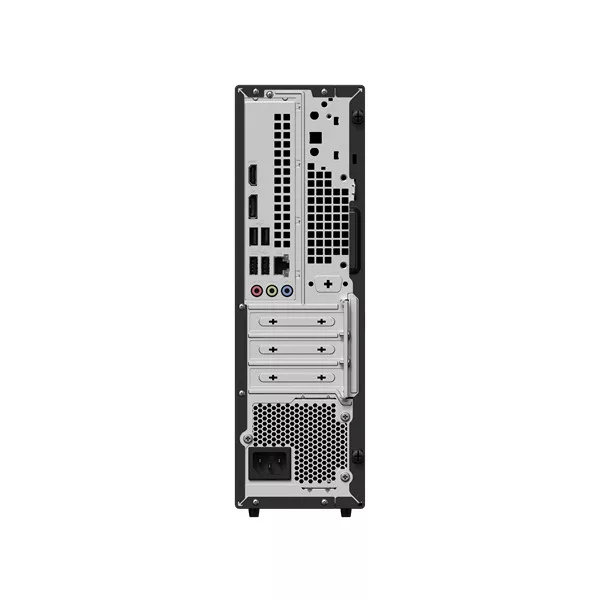

| Rear I/O Port |
1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x Displayport 1.4
1x 7.1 channel audio (microphone, line-out, Line-in)
1x Kensington lock
4x USB 2.0 Type-A |

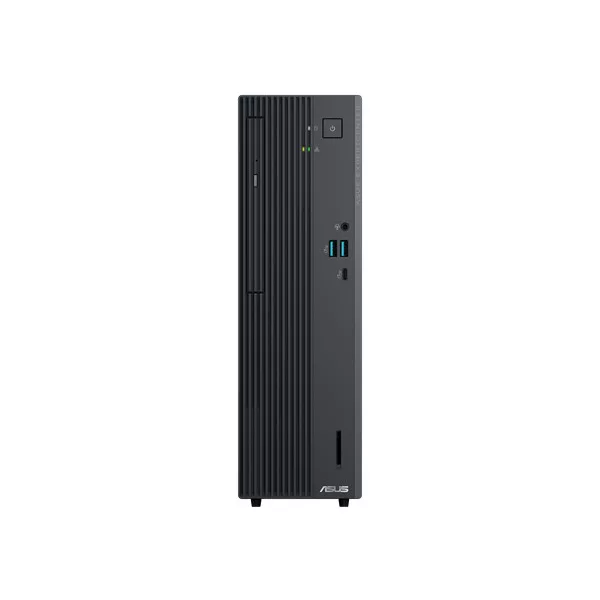

| Front I/O Port |
1x 3.5mm combo audio jack
1x USB 3.2 Gen 1 Type-C
2x USB 3.2 Gen 1 Type-A |
| Drive Bay |
3.5" x 1 |
| Serial ATA |
2 x SATA 6.0Gb/s ports |
| Expansion Slot(includes used) |
1x PCIe® 4.0 x 16 (operating at PCIe® 4.0 x8)
1x M.2 connector for WiFi
2x M.2 2280 connector for storage
2x DDR5 SO-DIMM slot |
| Keyboard & Mouse |
Without keyboard
Without mouse |
| Dimension (WxDxH) |
09.30 x 29.60 x 30.90 cm (3.66" x 11.65" x 12.17") |
| Weight |
05.06 kg (11.16 lbs) |
| My ASUS features |
System diagnosis
Fan profile
AppDeals |
| MyExpert Features |
N/A |
| Built-in Apps |
MyASUS
|
| Adobe Creative Cloud Hard Bundle |
1-month Adobe Creative Cloud Hard Bundle
*Terms and exclusions apply. Offer only available in eligible markets. Eligible markets are determined at activation, and varies by region, device, and time.
|
| Security |
Discrete Trusted Platform Module (TPM) 2.0
HDD User Password Protection and Security
Kensington Security Slot™(7x 3mm) |
| Ecolabels & Compliances |
EPEAT Silver
Energy star 9.0
REACH
RoHS |
| Base Warranty |
Zero Warranty |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warran |
*If you would like to know the details, please contact your sales teams. |
| Sustainable Material_Front bezel |
65% (Inkwell Grey)?60% (White) PCR recycled plastic front bezel |
| Sustainable Material_I/O bezel |
65% (Inkwell Grey)?60% (White) PCR recycled plastic I/O bezel |
